T-Adapter M12x1.5 Internal/External Thread for E-series

€22,99

Tax included. Shipping calculated at checkout.

Secure Checkout
450+ satisfied customers
Often reviewed

Questions about this product?

Security First

Pay conveniently and securely with the best-known, safest, and most proven payment methods.

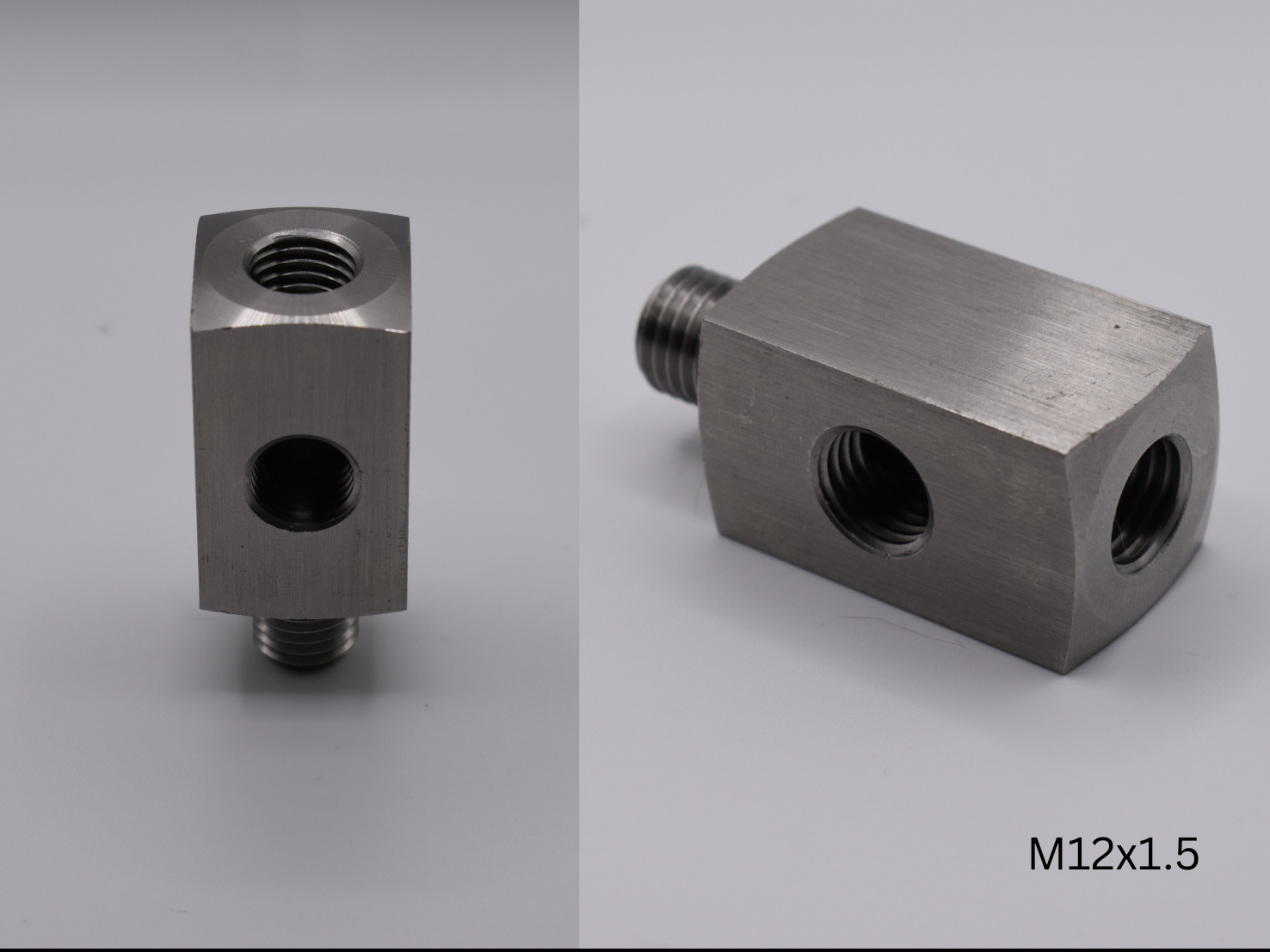

Stainless steel T-piece adapter for parallel mounting of oil pressure switch and additional sensors on the E-series.

Application
Simply remove the original oil pressure switch, screw in the adapter, and connect both sensors simultaneously – without conversion or modifications. Ideal for integrating combination or temperature sensors. Milled from high-quality stainless steel with M12x1.5 thread: two internal threads for sensors, one external thread for mounting on the engine.

Notes
- Copper sealing rings are required for sealing.
- The adapter offers easy sensor selection with a maximum sensor depth of up to 14.8mm longitudinally / 17.5mm laterally.
- Please note the available space – the total length of the sensor including the T-adapter is 105mm.
- The installation location varies depending on the vehicle model, usually installation is at the oil pressure switch connection.

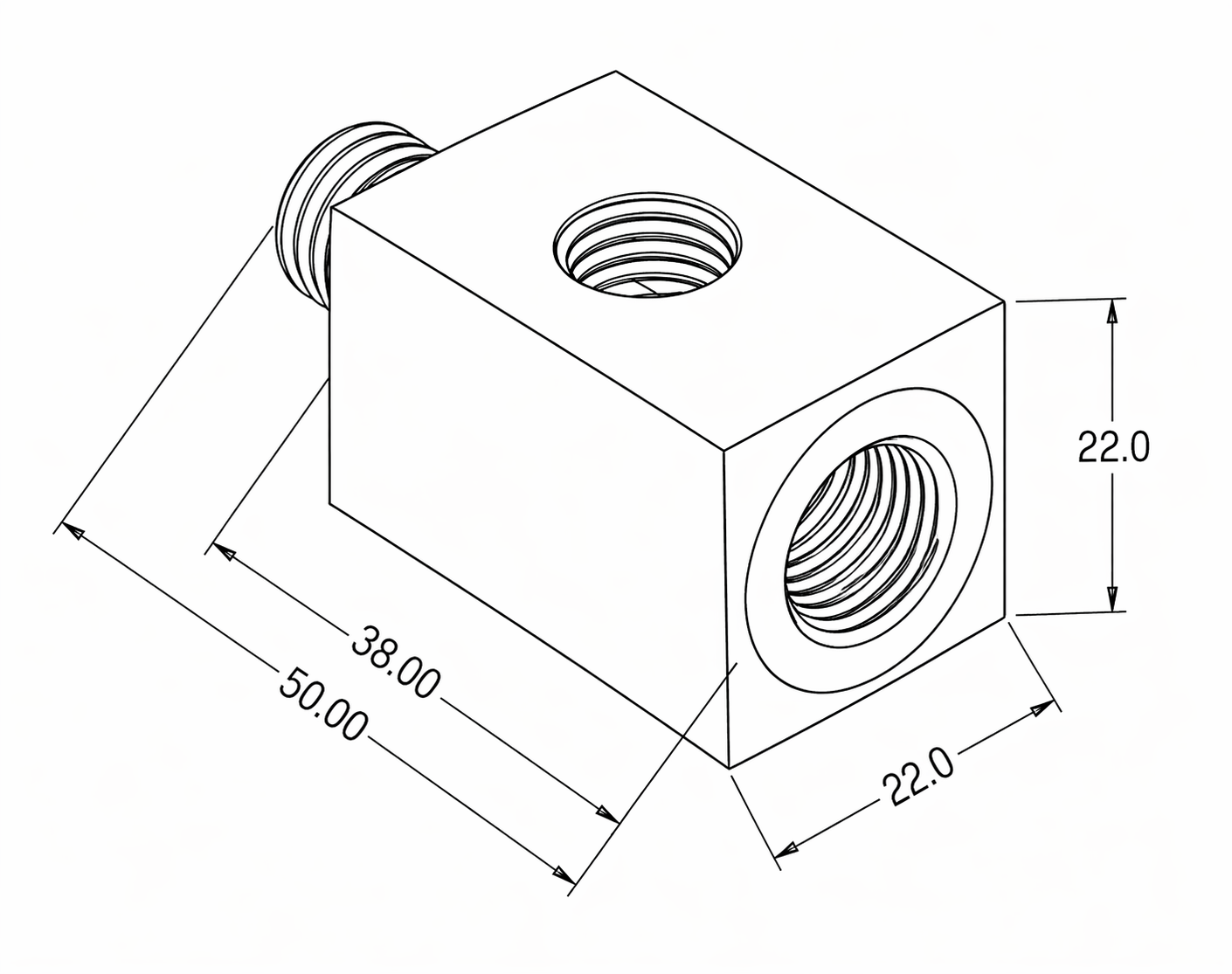

Technical Data

External thread	M12x1.5
Internal thread 1	M12x1.5
Internal thread 2	M12x1.5
Material	Stainless steel
Total length	50mm
Length without external thread	38mm
Shape	Square
Width	22mm
Wrench size	22
Tightening torque	not available / to be determined

Suitable model series
including: E46 E6X E7X E8X E9X

Supported Engines

E-Series

N52 / N53 / N54 / N55
N47 / N57
M47 / M57
N46

F-Series

N55 / S55
N47 / N57
B47 / B57
B48 / B58

Note: In principle, ALL engines are supported. This only refers to which engines also display engine data (lambda, exhaust gas temperature, intake temperature and more)

Update software

Update the Data Display's software quickly and easily via Wi-Fi - only with COREDISPLAY!

We regularly release new updates to improve security, as well as to support new features and engines!

→ Click here for the firmware download

Instructions

Don't worry! You're not alone during installation.

With clear instructions and good support in the background, anyone can do it!

Want to learn more in advance?
→ Click here for the instructions

Properties

Suspense	9 - 24V
Power Consumption	60mA at 12V
Display Size	1.43" (Round) / 2.41" (Square)
Updatable	Yes
Temperaturbereich	-20 °C bis max. 70 °C (Vor direkter Sonneneinstrahlung schützen)
