Oil pressure / temperature sensor

Name: Oil pressure / temperature sensor
Brand: COREDISPLAY
SKU: OIL-KOMBI
Price: 84.99 EUR
Availability: InStock

With main box Generation 4 (only older displays require it) No Yes

€84,99

Tax included. Shipping calculated at checkout.

Secure Checkout
450+ satisfied customers
Often reviewed

Questions about this product?

Security First

Pay conveniently and securely with the best-known, safest, and most proven payment methods.

Protect your engine and maintain complete oversight: This combined oil pressure and temperature sensor continuously measures both values and is queried by the COREDISPLAY up to 45 times per second.

This means even the smallest deviations in oil pressure are immediately detected in real-time – for maximum safety and full control over your engine.

➡️ Recommendation: Especially recommended for performance-enhanced or heavily stressed engines.
➡️ Especially recommended for N57 engines: Ideal for continuous monitoring of oil pressure to effectively prevent potential and costly engine damage.

⚠️ Important Installation Note:

No support is provided for installation, as there are too many different engines and installation situations. Please check the instructions beforehand and verify if the sensor fits in the intended location.

Click here for instructions

Tip: It may be necessary to use reducing nipples or a special Y-adapter for your engine (e.g., from TL Clubsport).

Technical Prerequisites

For this sensor to be used, your COREDISPLAY must meet the following criteria:

Hardware: COREDISPLAY with Generation 4 technology
Software: Firmware version 4.1.0 or higher
Production Date: Devices shipped from April 20, 2026, are directly compatible. Older models must be replaced.

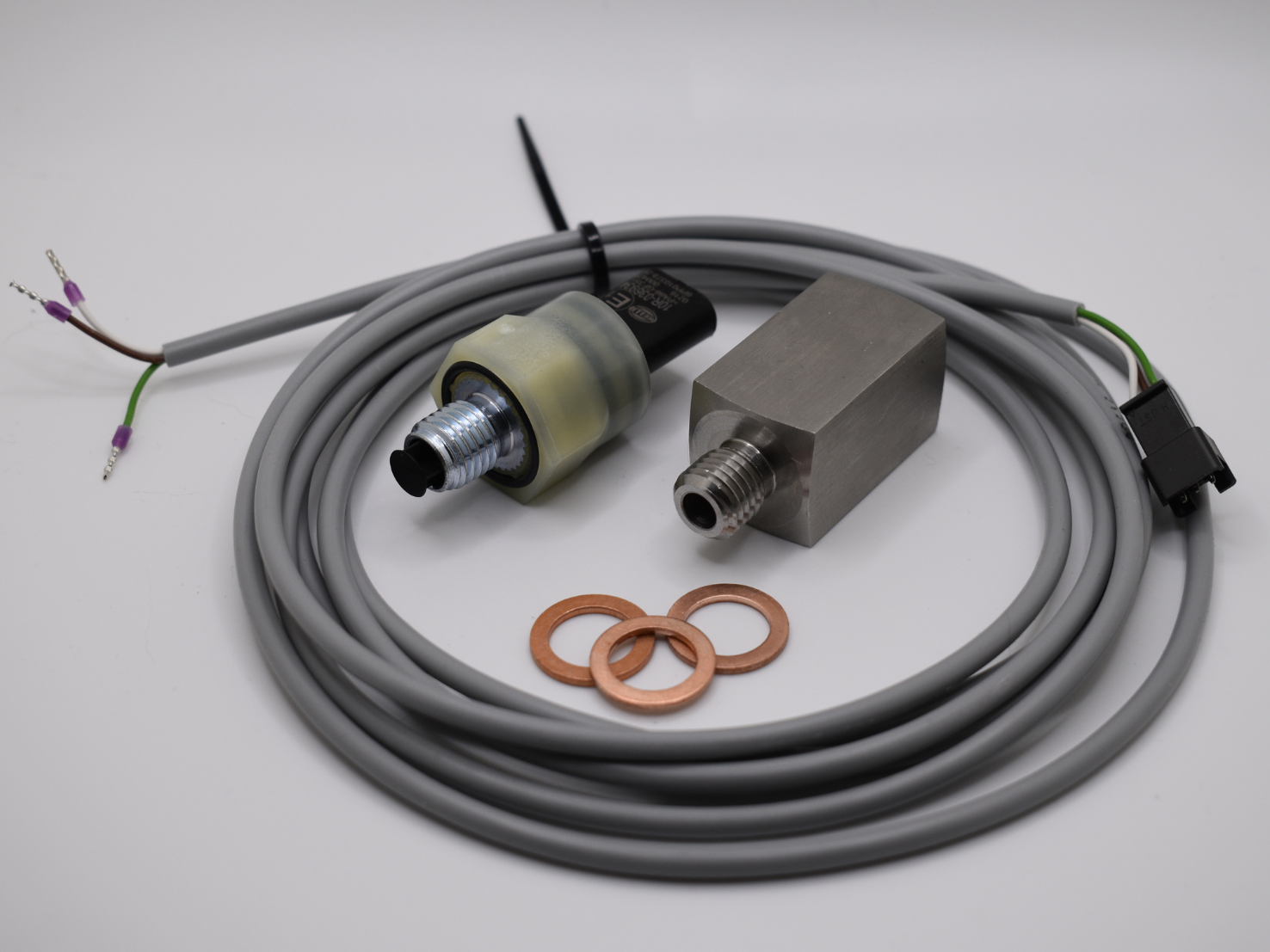

Scope of Delivery

1x Combined Oil Pressure and Temperature Sensor

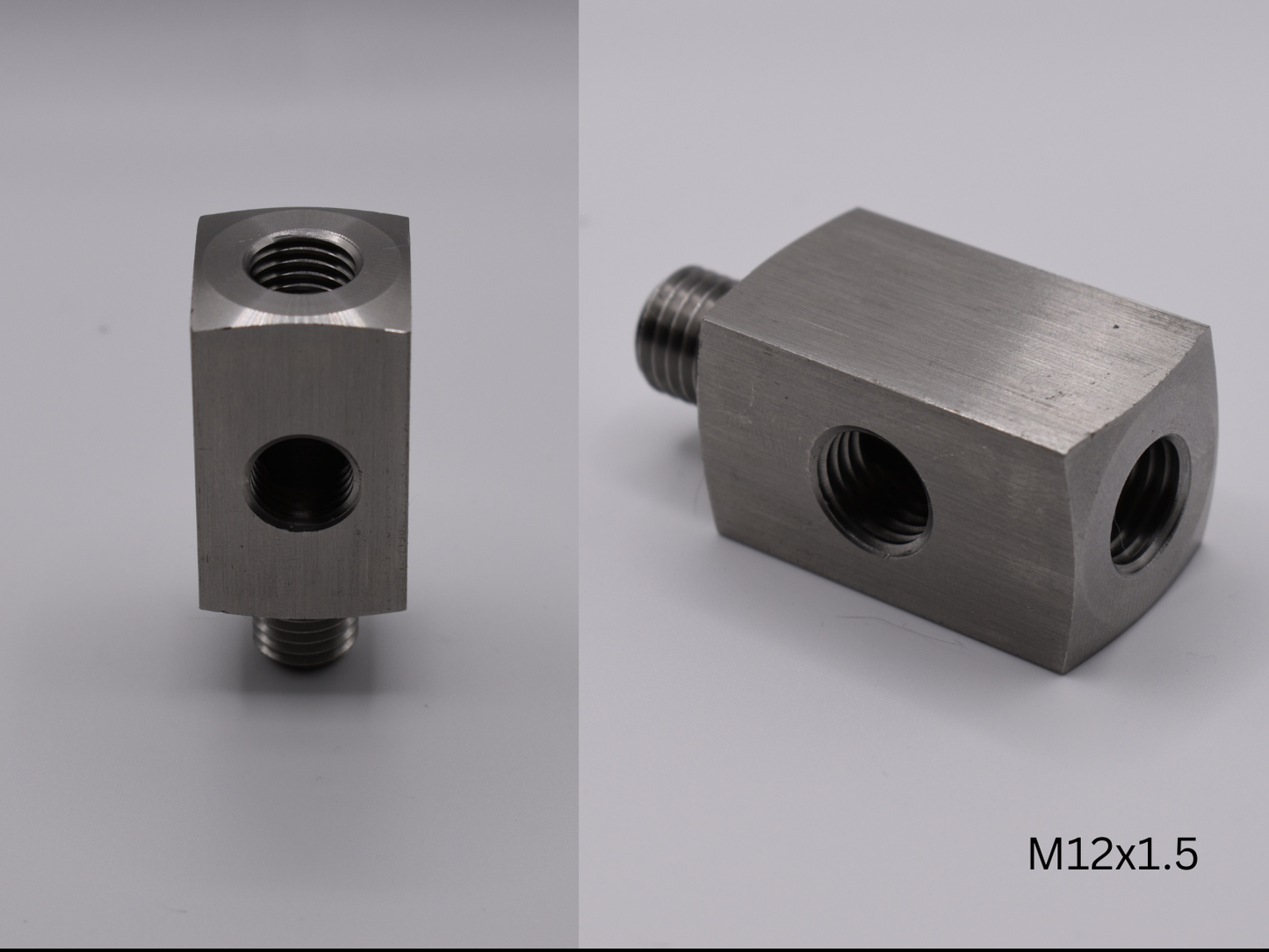

1x T-piece (1x M12x1.5 male, 2x M12x1.5 female) – Installation location: Oil pressure switch
1x 3M cable harness including intermediate connectors for easy and clean routing
3x Copper sealing rings

Technical Data

Property	Value / Specification
Operating Voltage Range	4.75 V - 5.25 V
Pressure Measuring Range	0.5 to 10.5 bar
Temperature Measuring Range	-40 °C to +160 °C
Temperature Range (Continuous)	-40 °C to +150 °C
Max. Temperature (Peak)	160 °C (max. 100 h lifetime)
Max. Operating Pressure	40 bar
Overpressure (Burst Pressure)	60 bar
Protection Class	IP 69K
Certification	Tested according to ECE-R10

Supported Engines

E-Series

N52 / N53 / N54 / N55
N47 / N57
M47 / M57
N46

F-Series

N55 / S55
N47 / N57
B47 / B57
B48 / B58

Note: In principle, ALL engines are supported. This only refers to which engines also display engine data (lambda, exhaust gas temperature, intake temperature and more)

Update software

Update the Data Display's software quickly and easily via Wi-Fi - only with COREDISPLAY!

We regularly release new updates to improve security, as well as to support new features and engines!

→ Click here for the firmware download

Instructions

Don't worry! You're not alone during installation.

With clear instructions and good support in the background, anyone can do it!

Want to learn more in advance?
→ Click here for the instructions

Properties

Suspense	9 - 24V
Power Consumption	60mA at 12V
Display Size	1.43" (Round) / 2.41" (Square)
Updatable	Yes
Temperaturbereich	-20 °C bis max. 70 °C (Vor direkter Sonneneinstrahlung schützen)
